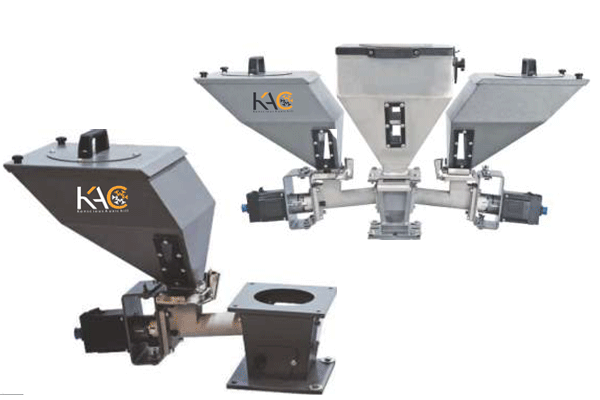

Konscious Auxichill presents Volumetric Feeders and Dosers designed to deliver consistent material dosing for plastic processing, chemical mixing, and other industrial applications. These units are ideal for controlled feeding of masterbatch, regrind, or additives with accuracy and ease of operation. Compact, low-maintenance, and cost-effective, they are a perfect fit for extrusion and molding lines.
Key Features of Volumetric Feeders / Dosers
- Robust Construction: User-friendly design with stepper motor for high accuracy and repeatability.
- Easy Clean-Out: Hinged motor assembly and quick-change detachable hopper.
- Versatile Screws: Five screw options for different masterbatch sizes and flow ratios.
- High Temperature Capacity: Designed for Indian conditions.
- Synchronization: Easy integration with machinery.
- MJ Make Controller: Quick access to settings and parameters.
- Program Modes: Supports injection, extrusion, and blow molding without additional converters.
- Dosing Capacity: Ranges from 0.04 kg/hr to 73 kg/hr.
- Efficient Additive Placement: Directly adds additives to the center of the main material flow.
- Rapid Clean-Out: Completed in under 60 seconds.
Why Choose Konscious Auxichill Volumetric Feeders?
- Simple yet reliable design for continuous feeding
- Accurate dosing without complex calibration
- Compact footprint – perfect for machine-top mounting
- Flexible integration with various processing equipment
- Available with auto-refill and low-level sensor options
Applications
KACVSD Series
|
MODEL |
OUTPUT KG/HR | MANUAL CLEANING | AUTO CLEANING | DIMENSION (Lx WxH) MM | RECIEVER CAPACITY (LITTER) | BLOWING POWER (KW) |
VOLTAGE |
CABLE SIZE COPPER |
MAIN MCB |
| KACVL10·MC·0.9 | 150 | YES | NO | 370x350x920 | 10 | 0.9 | 415V,3PH | 1.5 SQ MM | 16 AMP |
| KACVL10 AC·0.9 | 150 | NO | YES | 450×350 x920 | 10 | 0.9 | 1.5 SQ MM | 16 AMP | |
| KACVL10 MC·1.5 | 250 | YES | NO | 450×350 x920 | 10 | 1.5 | 2.5 SQ MM | 16 AMP | |
| KACVL10 AC·1.5 | 250 | NO | YES | 370x350x920 | 10 | 1.5 | 2.5 SQ MM | 16 AMP | |
| KACVL10·MC·2.2 | 300 | YES | NO | 450×350 x920 | 10 | 2.2 | 6.0 SQ MM | 16 AMP | |
| KACVL10 AC·2.2 – BIG | 300 | NO | YES | 370 x350 x920 | 20 | 2.2 | 6.0 SQMM | 16 AMP | |
| KACVL15·MC·4.0 | 600 | YES | NO | 450x350x920 | 20 | 4 | 10 SQMM | 32 AMP | |
| KACVL15·AC·4.0 | 600 | NO | YES | 450x350x920 | 20 | 4 | 16 SQMM | 32 AMP | |
| KACVL20 MC·7.5 | 750 | YES | NO | 600x450x920 | 40 | 7.5 | 16 SQ MM | 32 AMP | |
| KACVL20 AC·7.5 | 750 | NO | YES | 600x450x920 | 40 | 7.5 | 25 SQ MM | 32 AMP |
Technical Specifications
- Dosing Capacity: 0.1–100 kg/hr
- Motor: AC geared / Stepper motor (0.09 to 0.25 kW)
- Hopper Volume: 6 to 25 liters
- Screw Diameter: 12–45 mm (based on model)
- Control: Digital speed controller / Timer-based dosing
- Power Supply: 230V / 1 Phase / 50 Hz
Advantages of Volumetric Dosing Systems
- Cost-effective solution for accurate additive dosing
- Quick installation with minimal setup
- Low maintenance and operator-friendly design
- Consistent output with minimal material wastage
Frequently Asked Questions (FAQs)
Volumetric feeders are used to dispense specific volumes of material consistently over time, especially in plastic and chemical industries.
Yes, we offer screw variants for powders, granules, and even sticky regrind.
The dosing rate is controlled by adjusting the screw RPM using a digital controller or stepper motor.
Yes, most models support direct machine-top mounting for minimal footprint.
